Pneumatic high-pressure small flow control valve

關注次數：

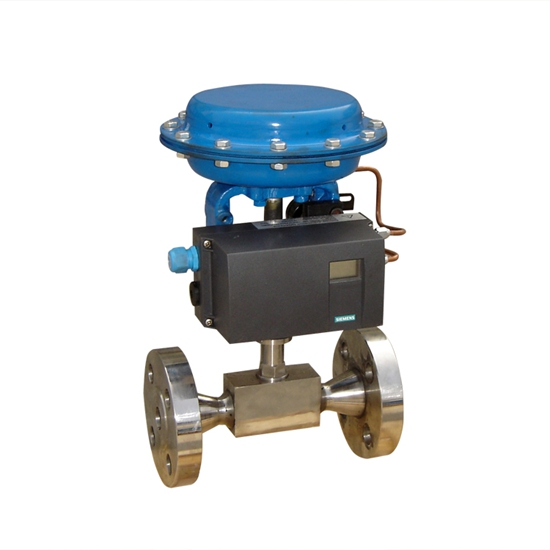

Pneumatic high-pressure small flow control valve has the advantages of small volume, light weight, high performance, for precise micro flow control. For example, in the fine chemical industry, its use of flow and pressure of micro controlling precision of scientific research institution. The design of the valve body pressure up to 32MPa. Can choose the moving film mechanism or electric actuator spring gas.
Pneumatic high-pressure small flow control valve technical parameters and performance:
The body part:

The valve type:	straight through valve body forging
Nominal diameter:	DN5、8、10、15、20、25mm
Nominal pressure:	PN 1.6、2.5、4.0、6.4、10、16、20、32 Mpa
	CLASS 150、300、 600、900、1500 Lb
	JIS 10K、20K、30K、40K
Connection:	Thread: (applicable to 1 "below)
Connection:	Welding：SW、BW
Flange focal distance:	In accordance with IEC 534
The valve cover form:	The body of a body
The filler:	V type Teflon, flexible graphite packing etc.
A seal.	The metal clip graphite gasket, PTFE gasket
Actuator:	Pneumatic: multi spring actuator
Actuator:	Electric: 3810L series, PSL series

Valve parts:

Valve type:	single seat plunger
Flow characteristics:	percentage, linear, quick opening
Within the pieces of material :	standard material combinations and see Appendix using temperature, pressure range

Note:
Configuration 1, above the standard, the seat of metal on metal, PTFE soft seat is optional VI level seal. Can also provide with hardened valve Stalin Levin alloy coating in pieces. According to the specific use of temperature, we have a more rational choice of bolt and nut.
2, the PTFE V standard ring valve stem packing is also can use flexible graphite, graphite packing a equipped with elongated valve cover can be used for temperature more than 232 degrees (450 degrees Fahrenheit).
3, standard body material is carbon steel and stainless steel, can also provide a variety of alloy material for high corrosive applications.
