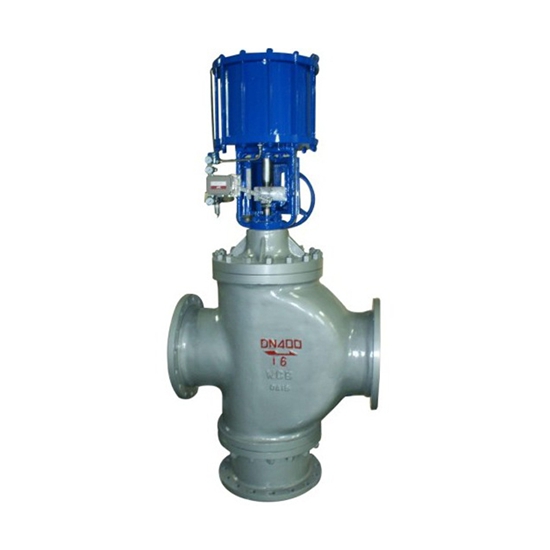

ZMAX (Q) series of pneumatic diaphragm three valve dual spool upper and lower guide structure, equipped with multi spring actuator, valve for the four structures, namely one into two (shunt), two into a (confluent), so as to achieve the fluid mixing heating or cooling effect, or fluid from a shunt, meet the requirements of different conditions. The valve has the advantages of compact structure, in a light, sensitive action, small pressure drop loss, allowing the pressure high, new capacity is big, flow valve is accurate and convenient maintenance and so on, can be used in a variety of working conditions, temperature automatic control system and other industry control is especially suitable for the oil industry in the heat exchanger.
The valve has closed (divided) flow type, (points) flow high temperature type and other types of. Product nominal pressure level of a user PN1.6, 4, 6.4; the valve nominal diameter range of DN25~400; leakage class II grade, IV grade; flow is characteristic for linear and equal percentage. A variety of different specifications are available.

Materials of main parts

The main technical parameters of the three-way valve

Main performance index

Note: This product performance accords with GB/T4213 - 2008

Ordering instructions
When ordering, please fill in "specification" or indicate the following contents:
One, if the order has not selected models, please provide the parameters are used to send us your
1, nominal diameter, nominal flow in coefficient Kv
2, the fluid properties (including the nominal pressure, temperature, viscosity and pH value "
3, the valve action form (gas closed or gas - Open)
4, flow at
5, in front of the valve, the valve pressure
6, valve body, broad core material
7, the input signal
8, with the attachment, the attachment type, so that we can correct for your selection.
Two, special requirements
1, special inspection
2, complete degreasing, water treatment;
3, no copper processing;
4, special interface, piping;
5, the use of vacuum conditions;
6, specify the color of the coating
7, special medium (gas, chlorine, nitrogen)
8, the use of stainless steel connections;
Three, if the unit has been selected from the design of our products, please click models directly to our sales department order
Four, the occasion is very important when using or complicated pipelines, please make cocoons provide design drawings and detailed parameters, from our experts to your review gatekeeper.
